Heating & Air Conditioning

---

COMPLETE AIR PACKAGE

PACKAGE INCLUDES :

• ELITE SERIES Evaporator
• SANDEN Compressor
• ALAN GROVE Compressor Bracket
• Condenser
• Hose Kit
• Binary Safety Switch

FEATURES :

• 5 Year Parts Replacement Warranty
• The Largest Pass Coil Available For Maximum Performance
• Compressor Engages In All Positions For Total Climate Control
• Blower Motor Serviceable Without Discharging A/C System

Elite Standard     $795.00 PLUS FREIGHT
Elite Deluxe     $835.00 PLUS FREIGHT

---

A/C Components

---

EVAPORATORS

HRA51-0000	Heat & Cool Only Standard	$330.00
HRA51-1000	Heat, Cool and Defrost Standard	$398.00
HRA52-0000	Heat & Cool Only Deluxe	$399.00
HRA52-1000	Heat, Cool and Defrost Deluxe	$419.00
	Slide Bar Option	$80.00
	Oval Panel Option	$98.00

---

Drier

HRA09-1001	STANDARD BLACK DRIER WITH BRACKET	$35.00
HRA09-0201	CHROME DRIER WITH BRACKET	$79.00
HRA09-1100	POLISHED ALUMINUM DRIER WITH BRACKET	$85.00

---

A/C Hose Kit

COMPLETE LINE OF AIR CONDITIONING AND HEATER HOSE KITS. A/C HOSE KIT COMES COMPLETE WITH 6' #6 A/C HOSE, 4' #8 A/C HOSE, 5' #10 A/C HOSE, ALL FITTINGS, O-RINGS, CRIMP COLLARS, REFRIGERANT OIL AND INSTRUCTIONS (AVAILABLE WITH OR WITHOUT DRIER AND BRACKETS).

W/Black Drier    $98.00        W/Chrome Drier   $159.00

---

Compressors

NEW SANDEN COMPRESSORS AVAILABLE IN STANDARD FINISH POLISHED OR BLACK URETHANE. V-BELT OR MULTI-GROOVE.


Plain	$189.00
Polished	$219.00

134a		R-12
HRA13-4509	V-BELT STANDARD	HRA12-9285	V-BELT STANDARD
HRA23-4509	V-BELT POLISHED	HRA22-9285	V-BELT POLISHED
HRA33-4509	V-BELT BLACK URETHANE	HRA32-9285	V-BELT BLACK URETHANE
HRA13-4514	MULTI-GROOVE STANDARD	HRA12-9537	MULTI-GROOVE STANDARD
HRA23-4514	MULTI-GROOVE POLISHED	HRA22-9537	MULTI-GROOVE POLISHED
HRA33-4514	MULTI-GROOVE BLACK URETHANE	HRA32-9537	MULTI-GROOVE BLACK URETHANE
HRA13-4536	V-BELT REAR EXIT STANDARD
HRA23-4536	V-BELT REAR EXIT POLISHED
HRA33-4536	V-BELT REAR EXIT BLACK URETHANE
HRA13-4523	MULTI-GROOVE REAR EXIT STANDARD
HRA23-4523	MULTI-GROOVE REAR EXIT POLISHED
HRA33-4523	MULTI-GROOVE REAR EXIT BLACK URETHANE

---

Compressor Hard Lines

Polished Aluminum Compressor Lines Clean up Hose Routing From Compressor.

HRA05-1810	R-12 Polished Lines	$39.95
HRA05-0810	134a Polished Lines	$39.95

---

Condensers

The condenser size is very important. Use the largest possible for your application. We carry more sizes than shown. Call for information on your specific application.

HRA15-1220	12H x 20W M-O Parallel Flow	$115.00
HRA15-1224	12H x 24W M-O Parallel Flow	$115.00
HRA15-1420	14H x 20W M-O Parallel Flow	$117.00
HRA15-1424	14H x 24W M-O Parallel Flow	$117.00
HRA15-1619	13H x 10W M-O Tube & Fin	$85.00
HRA15-2014	20H x 14W M-O Tube & Fin	$89.00
HRA15-2214	22H x 14W M-O Tube & Fin	$112.00
HRA15-2215	22H x 14W M-O Tube & Fin Bottom	$117.00
HRA15-2216	22H x 14W M-O Tube & Fins Side Exit	$117.00
HRA15-0320	14H x 20W Rem. Condenser w/ Fan	$189.00

---

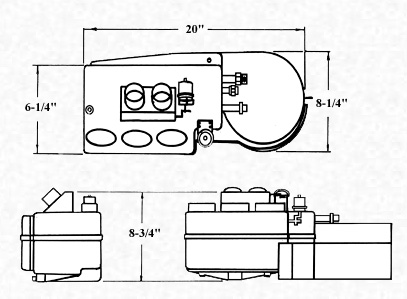

Standard Specifications

Deluxe Specifications

---

OIL COOLERS

Billet Aluminum Oil Filter/Coolers

    The Kleen'n Kool System is designed to Cool any vehicle fluids including: Automatic Transmission Fluid, Power Steering Fluid, Engine Oil, Engine Coolant, Fuel...

    Heat sink design features internal and external cooling fins to transfer heat and minimize the need for direct airflow. Transfers an average of 800 BTU per foot of cooler.

    Compact design, 3" diameter, mounts in tight places-even on frame rails away from confined spaces between grills and radiators.
    Cools better than conventional coolers when you need it most under 40 mph.
    Sturdy welded aluminum construction withstands toughest operating conditions-unlike coolers with soldered construction. Contains pressures up to 2800 psi.
    High fluid capacity adds one quart for each 14 inches of cooler length.
    Available microfiltration system for auto trans and power steering application. Removes damaging particles down to 4 microns in size. A full bypass system prevents clogging.
    Four standard lengths are available: 12", 19", and 32". All sizes available with 1/4" NPT, 3/8" NPT, and 1/2" NPT threaded end plates at no extra charge. Mounting plates are welded for extra strength.
    Standard finish is satin aluminum.
    Polishing is available for additional $25.00.
    Satisfaction guaranteed or your money back.

SAT-12	12" Oil Filter/Cooler	$85.00
SAT-19	19" Oil Filter/Cooler	$95.00
SAT-24	24" Oil Filter/Cooler	$105.00
SAT-32	32" Oil Filter/Cooler	$110.00

---

All Prices subject to change without notice.		Last Updated:
